Tire Design Radial Sinotruck HOWO 6*4 Towing Trailer Truck Front Lifting Style

Product Categories

Liangshan Zhongcheng Deli Trading Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Tire Design Radial Sinotruck HOWO 6*4 Towing Trailer Truck Front Lifting Style

Model NO. : ZZ4257V3247B1

Drive Wheel : 6×4

Engine Capacity : ＞8L

Seats : ≤5

Horsepower : 351-450hp

Tire Certification : ECE, GCC, ISO, DOT

Tire Design : Radial

Dumping Type : Front Lifting Style

Condition : Used

Transport Package : in Nude

Specification : 6850*2550*3200mm

Trademark : HOWO

Origin : China

HS Code : 8701300090

Supply Ability : 4000 Pieces Peryear

After-sales Service : Yes

Warranty : 1 Year

Transmission Type : Manual

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Delivery Time : within 15 workdays

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Contact Now

Product discribtion
Our Main Products Heavy Trucks, Electric vehicles and Construction Machinery. Like Brand SINOTRUK, SHACMAN, DONGFENG, WULING, FOTON ETC. Include tractor trucks, dump trucks, cargo trucks, trailer truck, Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), including dump truck, tractor truck, concrete mixer truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, and spare parts for them.

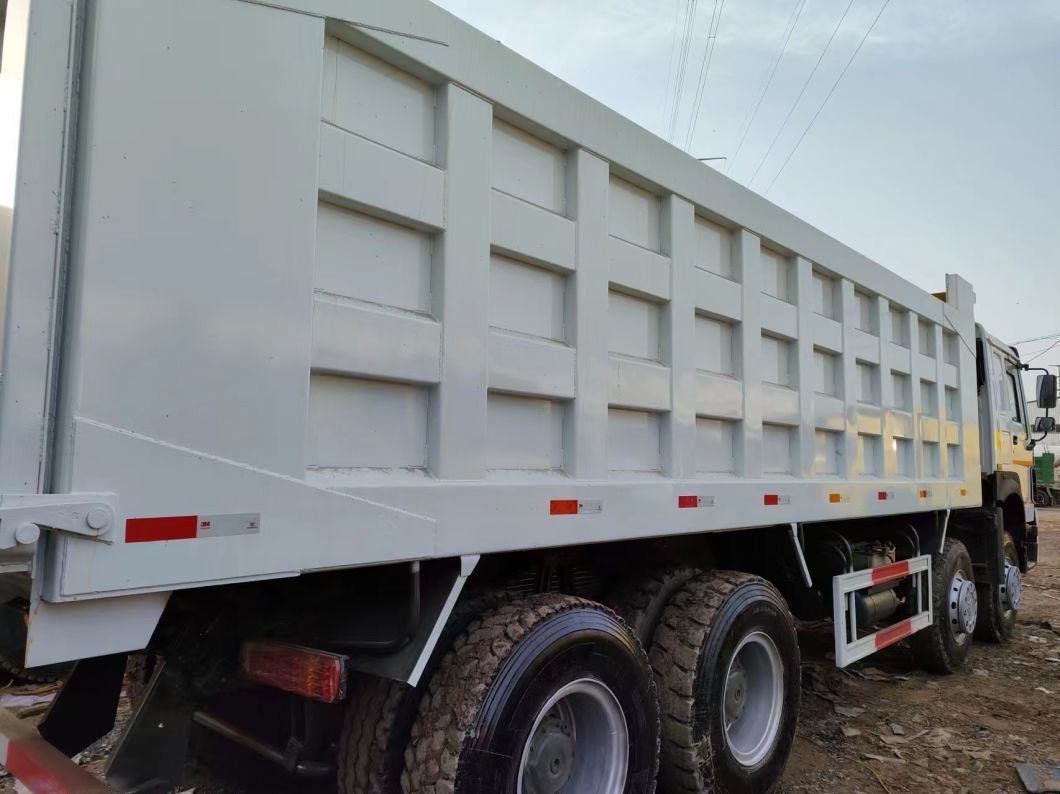

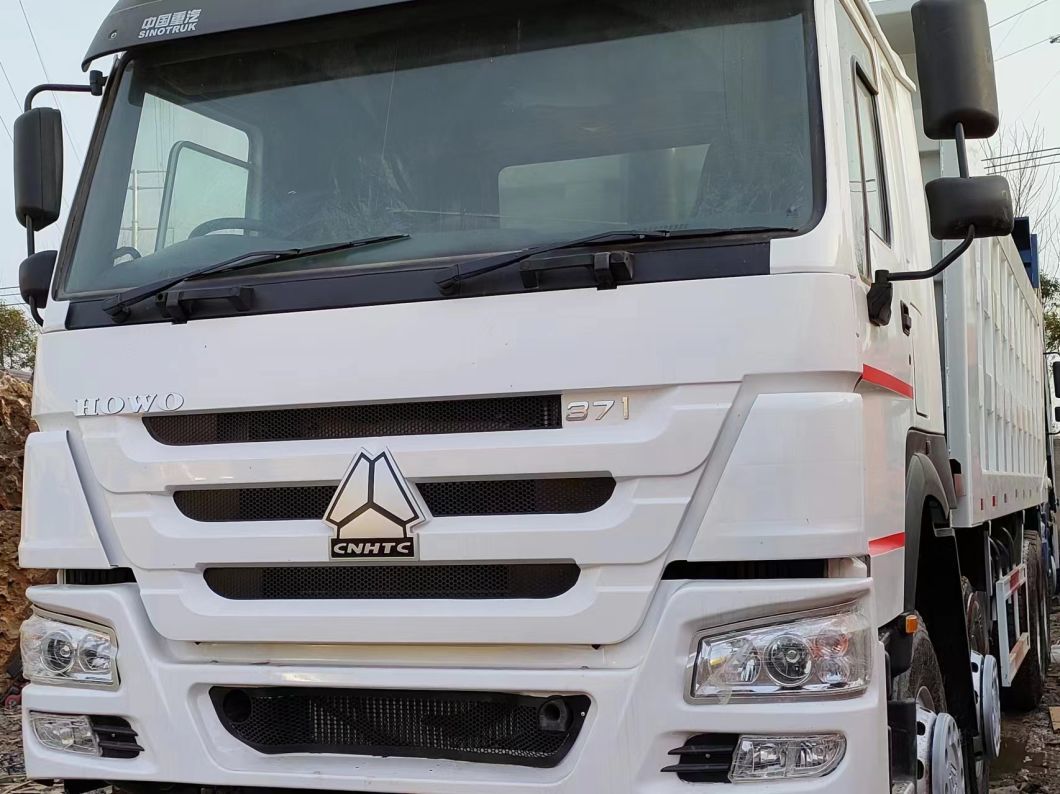

Photos of dump truck
About Product Description
SINOTRUK HOWO Euro 2 20-30 Ton Dump Tipper Trucks
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Excellent After-sale Service and Customization Service.

Truck Model		ZZ4257V3247B1
Truck Brand		HOWO
Dimension (LxWxH) (unloaded)mm		685025503200mm
Body		Carriage Internal Dimension:5400x2300x1500 mm Steel thickness of Carriage:Floor:8mm/Side:6mm Hydraulic Lift of Carriage:Middle Lift Steel:Q235
Approaching angle/ Departure angel (°)		19/24
Overhang (front/rear) (mm)		1500/1859
Min Turning Radius(m)		<8m
Wheel base (mm)		3225+1350
Max. Driving speed (km/h)		75
Front axle loading capacity (kg)		9000
Rear axle loading capacity(kg)		2*16000
Curb weight (kg)		12290
Gross vehicle weight		30000
Cab Model	SINOTRUK Standard cab,no bunk, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.
Engine Model	Model	WD615.69(EURO II),336hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Rated Power(kw/rpm)	247/2200
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71ºC opening begin, Rigid fan
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	Model	SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking Brake (emergency brake)	Spring energy, compressed
Steering system	Model	ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) Option:ZF8098(Right hand diving)
Front axle	SINOTRUK 9000kg Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear axle	SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &Tire	Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrical system	Electrics Operating voltage	24V,negative grounded
	Starter	24V,7.5 Kw
	Alternator	3-phase,28V,1500 W
	Batteries	2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light.
Oil Tank	Square type-300L fuel tank
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity

Our company
Liangshan zhongcheng deli trading co.LTD is located in Jinan city .It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc.

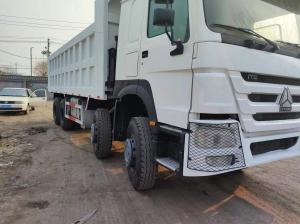

Tire Design Radial Sinotruck HOWO 6*4 Towing Trailer Truck Front Lifting Style Images
